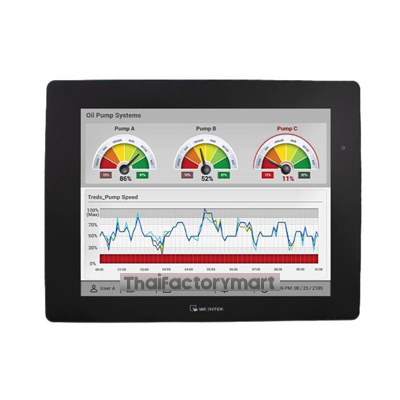

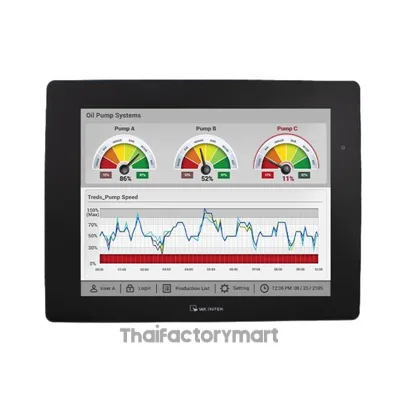

HMI 0 cMT2128X cMT2108X HMI with 12.1" TFT LCD Display Resistive Touch Screen Dual Ethernet ports Quad-core RISC CPU, 1GB RAM, 4GB Flash, 1xGbE LAN, 1xLAN, 3xCOM, 24VDC-in

cMT2108X HMI with 12.1" TFT LCD Display Resistive Touch Screen Dual Ethernet ports Quad-core RISC CPU, 1GB RAM, 4GB Flash, 1xGbE LAN, 1xLAN, 3xCOM, 24VDC-in

cMT2128X

FLASH SALE HOT

แบรนด์ : WEINTEK สินค้า HMI ซีรีย์ : cMT X Series

เอกสาร

THB0.00 THB31,500.00

จัดส่งภายใน 2–5 วัน

รายละเอียดสินค้า
ข้อมูลสินค้า
แค็ตตาล็อก

รายละเอียดสินค้า

Specifications

cMT2128X HMI:

12,1" wide screen TFT display (16.7M colors)
Resolution: 1024 x 768 pixels
Brightness: 500 cd/m²
Contrast ratio: 1000:1
Touch screen: Analog resistive
Processor: Quad-core RISC
PLC interface: RS232/485, 1 x 10/100/1000 + 1 x 10/100 Mbps Ethernet
USB ports: 1 USB 2.0 host port
(for connection of keyboard, mouse, barcode scanner, printer, etc.)
Remote monitoring and control of multiple cMT HMIs by using a tablet or smartphone
Real Time Clock / Calendar
Power supply: Isolated 24 VDC input
Enclosure: Plastic
Mounting: Panel mount, VESA mount 75 x 75 mm
Comes with PET V1.0 Screen Protective Film

FEATURES:

Display	Display	12,1" TFT
	Resolution (px)	1024x600
	Brightness (cd/m2)	500
	Contrast Ratio	1000:1
	Backlight Type	LED
	Backlight Life Time	>30000 hrs.
	Colors	16.7M
Touch Panel	Type	4-wire Resistive Type
Touch Panel	Accuracy	Active Area Length(X)±2%, Width(Y)±2%
Memory	Flash (GB)	4
Memory	RAM (GB)	1
Processor	Type	Quad-core RISC
I/O Port	SD slot	N/A
	USB Host	USB 2.0 x 1
	USB Client	N/A
	WiFi	M02 WiFi Expansion Module (Optional)
	Ethernet	LAN 1: 10/100/1000 Base-T x 1 LAN 2: 10/100 Base-T x 1
	COM port	Com.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Com.B: COM1 RS-2324W, COM3 RS-232 2W*
	CAN Bus	N/A
RTC	Real Time Clock	Built-in
Power	Input power	24±20% VDC
	Power consumption	1,2A@24VDC
	Power Isolation	Built-in
	Voltage resistance	500 VAC (1 min.)
	Isolation Resistance	Exceed 50 MOhm at 500VDC
	Vibration Endurance	10 to 25 Hz (X,Y,Z direction 2G 30 minutes)
Specification	Enclosure	Plastic

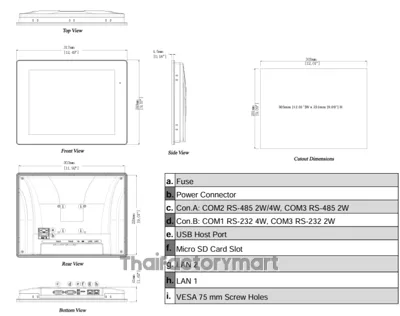

	Dimensions WxHxD	317 x 243 x 41mm
	Panel Cutout	305 x 231mm
	Weight	Approx. 1,7 kg
Environment	Protection Structure	NEMA4 / IP66 Compliant Front Panel
	Storage temperature	-20 ~ 60 ° C (-4°~ 140 ° F)
	Operating temperature	0 ~ 55 ° C (32°~ 131 ° F)
	Relative Humidity	10 % - 90 % (non-condensing)
Certification	CE	CE marked
Certification	UL	cULus Listed
Software	Free	Easy Builder Pro V6.08.01 or later version
Tariff	Custom Tariff number	85371091

*Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.

Datasheet

New 12” HMI Debut

Fast, smart, and stable, the cMT X Series has won much acclaim since its initial launch. Acknowledging ongoing demands for certain markets, Weintek is pleased to announce the release of the first 12” cMT X Standard HMI: cMT2128X. This new model incorporates new hardware and software designs that are needed to satisfy today’s requirements.

cMT2128X is equipped with powerful hardware, including a quad-core CPU, 4GB of Flash memory, 1GB of RAM, an 89° all-around wide viewing angle display, dual-Ethernet ports, and complete serial port options (RS232 2W/4W, RS485 2W/4W, SIEMENS MPI), all of which contribute to an exceptional operating experience. In terms of software, it offers many cMT X exclusive features, particularly in secure file transfer, multimedia support, and mobile/remote monitoring, all designed to improve work efficiency and HMI applicability.
