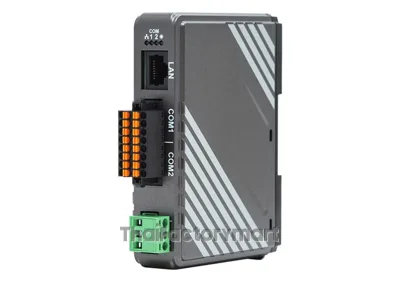

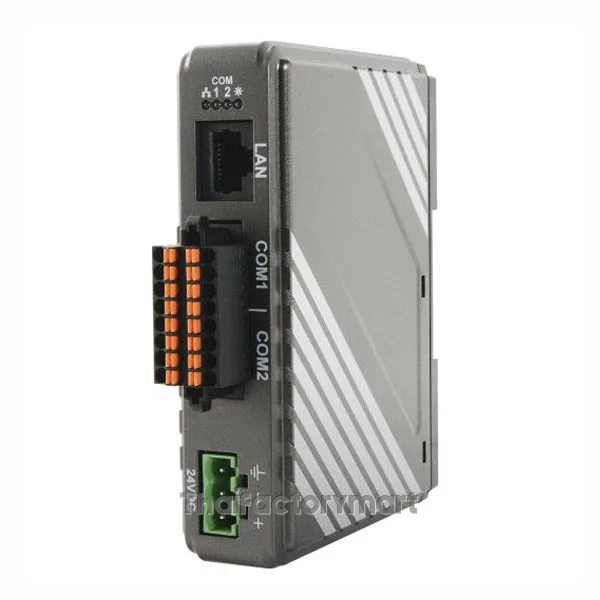

cMT-G03 - Communication Protocol Gateway
cMT-G03
- ARM RISC 528 MHz CPU
- 256 MB Flash, 256 MB RAM
- Supports OPC UA
- Supports MQTT
- Supports MODBUS TCP/IP Gateway
- DIN Rail Mount
System
| RTC |
Built-in |
I/O Ports
| Serial Ports |
2 |
Display
| Luminance (cd/m^2) |
1000 350 300 |
| Viewing Angle (H°/V°) |
N/A |
Electrical
| Input Power |
3.6 W |
| Power Isolation |
Built-in |
| Isolation Resistance |
Exceed 50 MO - @ 500 VDC |
| Input Voltage |
24 ± 20% VDC |
| Input Current |
300 mA @ 12 VDC; 150 mA @ 24 VDC |
Mechanical
| Vibration Endurance |
10 to 25Hz(X, Y, Z direction 2G 30 minutes) |
| Enclosure Material |
Plastic |

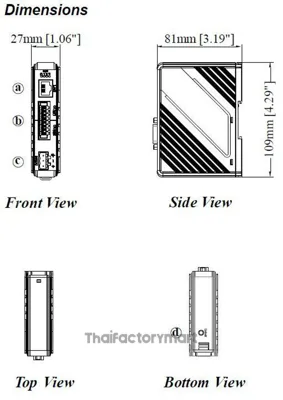

| Dimensions WxHxD |
4.29 x 3.19 x 1.06 inches [109 x 81 x 27 mm] |
| Weight |
Approx. 0.31 lbs. [0.14 kg] |
| Mounting |
35 mm DIN rail |
Environmental
| Storage Temperature |
-4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature |
32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity |
10% ~ 90% (non-condensing) |
Certification
| UL Type Rating |
N/A |
| IP Rating |
IP20 |
| CE |
Yes |
| UL |
cULus Listed |
| RoHS |
Yes |
