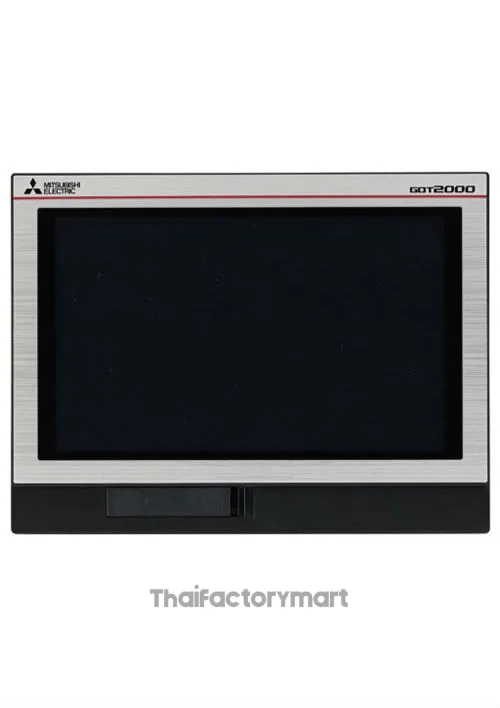

HMI Mitsubishi GT2107-WTSD Mitsubishi GT21 Series GOT2000 Touch Screen HMI 7 in LCD 800 x 480pixels Silver

Mitsubishi GT21 Series GOT2000 Touch Screen HMI 7 in LCD 800 x 480pixels Silver

GT2107-WTSD

FLASH SALE HOT

แบรนด์ : Mitsubishi สินค้า HMI ซีรีย์ : G0T2000

เอกสาร

THB0.00 THB18,500.00

จัดส่งภายใน 2–5 วัน

รายละเอียดสินค้า
ข้อมูลสินค้า
แค็ตตาล็อก

รายละเอียดสินค้า

Expands possibilities of GT21 models

Compact body with basic functions and high resolution LCD.
The GOT wide model satisfies your needs in various applications.

Feature

The highest resolution screen in the GT21 models, with various built-in interfaces

The GOT2000 wide models are available in a choice of silver and black. In addition to the high resolution display, 65536 colors of LCD improves quality of screen display.
The first GT21 model with the USB host enables you to connect a USB mouse and keyboard, or transfer data using a USB memory.In addition, Ethernet printers can be used.

: High resolution WVGA:
800 × 480 dots
: Ethernet, USB host (USB-A)
equipped as standard
: Support VNC server
function
: Support outline font and
antialiasing

Item	Specifications
Item	GT2107-WTBD GT2107-WTSD
Display	7" widescreen, TFT color LCD, 65536 colors
Resolution	WVGA 800 × 480 dots
Backlight	White LED
User memory	Memory for storage (ROM): 15 MB
Standard interface	Ethernet, RS-232, RS-422/485 USB host (USB-A): 1 channel (USB 1.1 (Full-Speed 12 Mbps)) USB device (USB Mini-B): 1 channel (USB 1.1 (Full-Speed 12 Mbps)) SD memory card interface

ข้อมูลสินค้า

GT27 model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2715	GT2715-XTBA	15" XGA	TFT color 65536 colors	Black	100 to 240 V AC	Multimedia & Video/RGB compatible Multi-touch compatible
GT2715	GT2715-XTBD	15" XGA		Black	24 V DC
GT2712	GT2712-STBA	12.1" SVGA		Black	100 to 240 V AC
	GT2712-STBD			Black	24 V DC
	GT2712-STWA			White	100 to 240 V AC
	GT2712-STWD *1			White	24 V DC
GT2710	GT2710-STBA	10.4" SVGA		Black	100 to 240 V AC
	GT2710-STBD	10.4" SVGA			24 V DC
	GT2710-VTBA	10.4" VGA			100 to 240 V AC
	GT2710-VTBD				24 V DC
	GT2710-VTWA			White	100 to 240 V AC
	GT2710-VTWD *1			White	24 V DC
GT2708	GT2708-STBA	8.4" SVGA		Black	100 to 240 V AC
	GT2708-STBD	8.4" SVGA			24 V DC
	GT2708-VTBA	8.4" VGA			100 to 240 V AC
	GT2708-VTBD	8.4" VGA			24 V DC
GT2705	GT2705-VTBD	5.7" VGA		Black	24 V DC	Multi-touch compatible

*1 To comply with the ATEX directive and KCs regulation, protective sheet (GT25-□□PSCC-UC) and special fitting (GT25-□□FIT-EXS) in the "Options" list are required separately. Communication units and option units cannot be used. When using these units, GOT does not conform to the standards. For the details, please refer to the Technical Bulletin
"GOT2000 Series in Compliance with the ATEX Directive and KCs Certification Requirements (GOT-A-0101-B) " (PDF).

* For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".

GT25 model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2512	GT2512-STBA	12.1" SVGA	TFT color 65536 colors	Black	100 to 240 V AC	-
	GT2512-STBD			Black	24 V DC	-
	GT2512F-STNA			-	100 to 240 V AC	Open frame model
	GT2512F-STND			-	24 V DC	Open frame model
GT2510	GT2510-VTBA	10.4" VGA		Black	100 to 240 V AC	-
	GT2510-VTBD			Black	24 V DC
	GT2510-VTWA			White	100 to 240 V AC
	GT2510-VTWD			White	24 V DC
	GT2510F-VTNA			-	100 to 240 V AC	Open frame model
	GT2510F-VTND			-	24 V DC	Open frame model
GT2508	GT2508-VTBA	8.4" VGA		Black	100 to 240 V AC	-
	GT2508-VTBD			Black	24 V DC
	GT2508-VTWA			White	100 to 240 V AC
	GT2508-VTWD			White	24 V DC
	GT2508F-VTNA			-	100 to 240 V AC	Open frame model
	GT2508F-VTND			-	24 V DC	Open frame model
GT2505	GT2505-VTBD	5.7" VGA		Black	24 V DC	-

*1 To comply with the ATEX directive and KCs regulation, protective sheet (GT25-□□PSCC-UC) and special fitting (GT25-□□FIT-EXS) in the "Options" list are required separately. (Only protective sheet is required for GT2508-VTWD.) Communication units and option units cannot be used. When using these units, GOT does not conform to the standards. For the details, please refer to the Technical Bulletin
"GOT2000 Series in Compliance with the ATEX Directive and KCs Certification Requirements (GOT-A-0101-B) " (PDF).

* For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved

GT25 wide model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2512	GT2512-WXTBD [NEW]	12.1" WXGA	TFT color 65536 colors	Black	24 V DC	Wide model
GT2512	GT2512-WXTSD [NEW]	12.1" WXGA		Silver *1
GT2510	GT2510-WXTBD	10.1" WXGA		Black
GT2510	GT2510-WXTSD	10.1" WXGA		Silver *1
GT2507	GT2507-WTBD	7" WVGA		Black
GT2507	GT2507-WTSD	7" WVGA		Silver *1

*1 The lower part of the panel including the USB environmental protection cover is black.

* For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "

GT25 Handy GOT

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2506	GT2506HS-VTBD	6.5" VGA	TFT color 65536 colors	Black	24 V DC	Handy GOT
GT2505	GT2505HS-VTBD	5.7" VGA	TFT color 65536 colors	Black	24 V DC	Handy GOT

* For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".

GT25 rugged model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2507	GT2507T-WTSD	7" WVGA	TFT color 65536 colors	Silver	24 V DC	Rugged model

* For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".

GT23 model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2310	GT2310-VTBA [September 30, 2023 to be discontinued]	10.4" VGA	TFT color 65536 colors	Black	100 to 240 V AC	-
GT2310	GT2310-VTBD [September 30, 2023 to be discontinued]	10.4" VGA		Black	24 V DC	-
GT2308	GT2308-VTBA [September 30, 2023 to be discontinued]	8.4" VGA		Black	100 to 240 V AC	-
GT2308	GT2308-VTBD [September 30, 2023 to be discontinued]	8.4" VGA		Black	24 V DC	-

* For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".

GT21 wide model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2107	GT2107-WTBD	7" WVGA	TFT color 65536 colors	Black	24 V DC	Wide model
GT2107	GT2107-WTSD	7" WVGA	TFT color 65536 colors	Silver *1	24 V DC	Wide model

*1 The lower part of the panel including the USB environmental protection cover is black.

* For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".

GT21 model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2104	GT2104-RTBD	4.3" [480×272 dots]	TFT color 65536 colors	Black	24 V DC	Ethernet, RS-422/485, RS-232
GT2103	GT2103-PMBD	3.8" [320×128 dots]	TFT Monochrome (black/white) 32 shade grayscale 5-color LED (white, green, pink, orange, red)	Black	24 V DC	Ethernet, RS-422/485
	GT2103-PMBDS				24 V DC	RS-232, RS-422/485
	GT2103-PMBDS2				24 V DC	RS-232 × 2 channels
	GT2103-PMBLS				5 V DC	RS-422 (FXCPU connection only)

* For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
