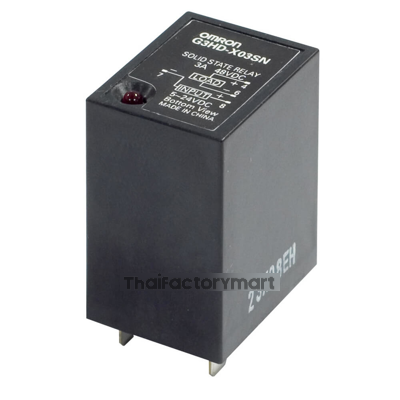

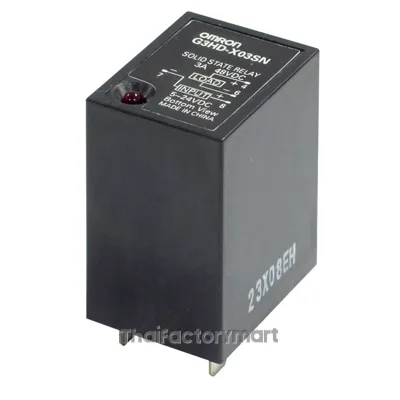

Solid state relay, 4 to 48 VDC, 3 A, plug-in terminals, equipped with operation indicator, 5 to 24 DC
G3HD-X03SN-VD 5-24VDC
FLASH SALE
HOT
ซีรีย์
G3H / G3HD
THB0.00 THB1,100.00
รายละเอียดสินค้า
Specifications
| Application | Interface |
| Number of phases | 1 |
| Mounting method | With plug-in socket |
| Terminal | Plug-in |
| Complete with socket | |
| LED indicator | |
| Rated operational voltage, DC | 4-48 V |
| Operating voltage range, DC | 3-52.8 V |
| Rated operation current Ie at AC-1 | 3 A |
| Supply voltage DC | 5-24 V |
| Must operate voltage max. | 9.6 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Photocoupler |
ข้อมูลสินค้า
G3H / G3HD
Plug-in type SSR, shape
and size compatible with
LY mechanical power relay
This SSR is compatible in shape and size with the LY series of relays and is mounted on a DIN-rail using a socket.
- 3A output current
- 4 to 48VDC / 100 to 240VAC output voltages
- Compatible with LY electromechanical relays
- DIN-rail mounting via sockets
- Operation indicator to confirm input
| Product | Description | |
|---|---|---|
| Solid state relay, 200VAC, 3A, plug-in |
|
|
| Solid state relay, 100..240 VAC, 3 A, plug-in terminals, equipped with operation indicator, 24 VDC |
|
|
| Solid state relay, 4 to 48 VDC, 3 A, plug-in terminals, equipped with operation indicator, 5 to 24 DC |
