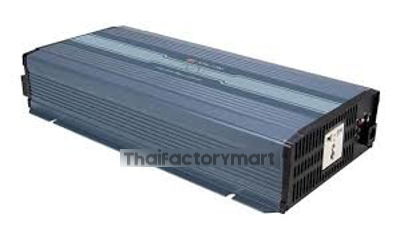

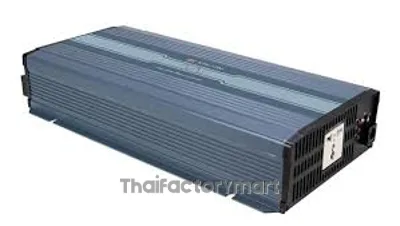

NTS-1700-248EU, DC / AC Inverter 40 - 66V 1.5kW Euro Type C (CEE 7/16) Socket / DE Type F (CEE 7/3) Socket
NTS-1700-248EU
เอกสาร
-
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
NTS-1700-248EU, DC / AC Inverter 40 - 66V 1.5kW Euro Type C (CEE 7/16) Socket / DE Type F (CEE 7/3) Socketข้อมูลสินค้า
Mean Well NTS-1200
1200W High Reliable True Sine Wave DC-AC Power Inverter
Features:
- True sine wave output (THD < 3%)
- High surge power up to 2000W
- Temperature controlled cooling fan
- AC output voltage and frequency selectable via DIP switch
- Low power consumption in standby mode (<1.5W)
- -25℃ to +70℃ wide operating temperature
- Power ON-OFF remote control
- Front panel LED indicators for status monitoring
Specifications:
| Output Power | 1200W (Continuous), 1380W (Over Rated), 2000W (Peak Power) |
|---|---|
| Input Voltage | 12V / 24V / 48V DC |
| Output Voltage | 100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V AC |
| Efficiency | Up to 93% |
| Protections | Overload, Over-temperature, Short circuit, Reverse polarity, Low/High DC voltage |
| Operating Temperature | -25℃ to +70℃ |
| Communication | Supports RS-232 communication (Cable sold separately) |
| Dimensions | 333 x 184 x 70 mm |
| Weight | 3.3 Kg |
| Warranty | 3 Years |
