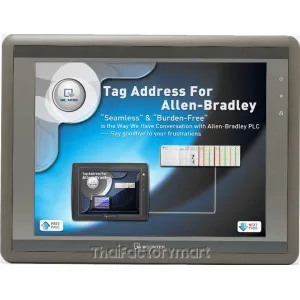

Weintek HMI Touch Screen eMT3120A 12.1" with CAN Open

EMT3120A

HMI

เอกสาร

THB49,500.00

จัดส่งภายใน 2–5 วัน

รายละเอียดสินค้า

Weintek 12.1" touch HMI



Specifications of the eMT3120A HMI:

  • 12.1" TFT color display (16.2M colors)
  • Resolution: 1024 x 768 pixels
  • Brightness: 500 cd/m²
  • Contrast ratio: 700:1
  • Touch screen: Analog resistive
  • Processor: 800MHz 32-bit CISC
  • Project & Firmware size limit: 64MB
  • History size limit: 64MB
  • SD card slot
  • PLC interface: RS232/485, CANbus, 10/100 Mbps Ethernet
  • USB ports: 1 USB 2.0 host port & 1 USB 2.0 client port (for connection of keyboard, mouse, barcode scanner, printer, etc.)
  • Real Time Clock / Calendar
  • Power supply: Isolated 24 VDC input
  • Enclosure: Aluminum
  • Mounting: Panel mount, VESA mount 75 x 75 mm

The MT8000iE Series touch screen operator interfaces are designed to connect directly to PLCs and other devices.

Weintek HMIs are designed to operate in harsh working environments.

Connectivity:

  • Connects to more than 300 different protocols/devices (i.e. PLCs, Inverters, etc.)
  • CAN Bus port supports CANopen protocol
  • Can communicate with different devices/protocols at the same time
  • Multiple Weintek operator panels can be daisy-chained
  • Pass-through function (program PLC through HMI connection)
  • Remote monitoring and fault diagnosis
  • Internet Of Things (IOT) connectivity
  • World-wide access to HMIs with EasyAccess

Capabilities:

  • Multiple security levels
  • Extensive graphics library
  • Data logging
  • Alarm handling
  • Recipes
  • E-mail
  • Trend display
  • Dynamic drawing/scaling
  • Display steams from IP or USB camera
  • Display video streams from Internet
  • Multi language support
  • Time synchronization
  • Macro support for the creation of complex functions
  • Offline/online simulation
  • And much more...

The EasyBuilder Pro configuration software is available as a FREE download.
