รายละเอียดสินค้า

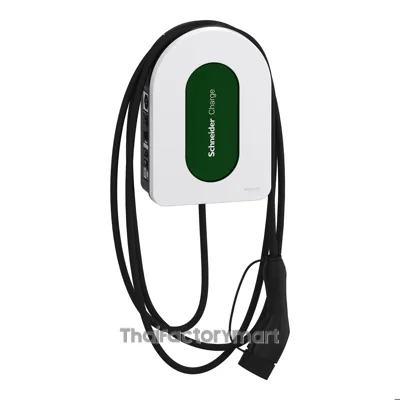

| Range | Schneider Charge |
|---|---|
| Product name | Schneider Charge |
| Product or component type | Charging station |
| Poles description | 1P + N |
| mounting mode | Wall-mounted |
| Max power | 7.4 kW 32 A |
| Number of charge point | 1 |
| Connection to the vehicle | Attached cable T2 bottom 5 m |
| rated supply voltage | 230...240 V AC 50...60 Hz +/- 10 % |
|---|---|
| Earthing system | IT 230 TT TN-S |
| number of inputs | 1 |
| Input type | Dry contact for dynamic energy management |
| Local signalling | Red, green and blue 1 LED, function: status indication |
| Protection type | Earth-leakage protection |
| Height | 352 mm |
| Width | 244 mm |
| Depth | 117 mm |
| Net weight | 4.5 kg |
| Colour | White/green |
| Standards | EN 61851 IEC 61851-1 |
| Communication network type | Wi-Fi Wireless Ethernet |
| Communication port protocol | OCPP 1.6, for connection to the Schneider Electric Wiser app |
| IP degree of protection | IP55 conforming to EN/IEC 60529 |
|---|---|
| IK degree of protection | IK10 |
| Ambient air temperature for operation | -30…50 °C |
| ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.000 cm |
| Package 1 Width | 29.000 cm |
| Package 1 Length | 48.000 cm |
| Package 1 Weight | 6.928 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 103.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 137.000 kg |
ข้อมูลสินค้า
เอกสาร
