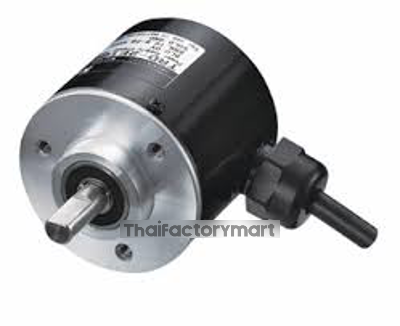

TRD-2E500V-3M Shaft 6 mm,500P/R,5VDC Line Driver
TRD-2E500V-3M
เอกสาร
-
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
Features
- φ40 Incremental Type
- Shaft diameter 6 mm.
-
Small design with an outside diameter of φ40 mm / depth of 36 mm
- Equipped with shor t-circuit protection circuit, reverse connection
- protection circuit (For resolutions up to 2,500 P/R)
- Realizes IP54 protective structure
TRD-2E500V |
|
Encoder Type | Incremental |
Duty Type | Light |
Pulse Per Revolution | 500 |
Output From | Side |
Shaft | Solid |
Cable Length (meter) | 3.00 |
Connector Type | Tinned Ends |
Protection Level | IP54 (Splash proof) |
Mounting Screws | Included |
Short Circuit Protection | No |
Total Shaft Length (mm) | 15.0 |
Usable Shaft Length (mm) | 10.0 |
