รายละเอียดสินค้า
CM-XT07CD-DE 10,4″ HMI Touchscreen. Resistive touchscreen, 10,4″ TFT 4:3, 800×600. Memory 512MByte DDR2 SDRAM. Storage 128MByte SLC NAND Flash. Operating System Windows Embedded Compact 7. 1x Ethernet 10/100, 1x USB, 2x RS-232, 1x 422/485, 1x SD Slot. CE, UL, FCC. Input Power DC 24V. Panel cut 267×207 mm
| LCD Size |
7" |
| LCD Type |
TFT Color |
| Colors |
16.7M colors |
| Resolution |
800 x 480 |
| Backlight |
LCD |
| Luminance |
600 cd/m² |
| Backlight Lifetime |
50,000 hours |
| Memory |
1 x 128 MB DDR2 SDRAM |
| Storage |
1 x 128 MB SLC NAND Flash |
| Operating System |
Windows CE 6.0 |
| Programming Software |
XpanelDesigner |
|

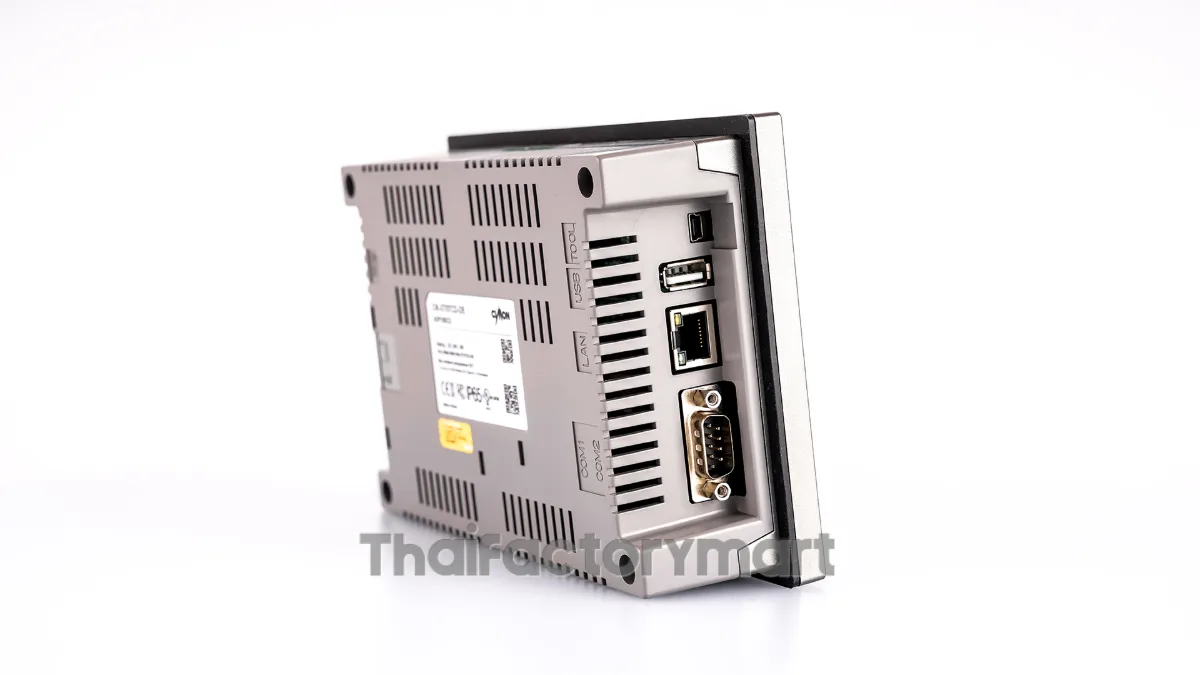

Interface
|
SD Card |
1 SD Slot |
| COM1 |
RS-232C |
| COM2 |
RS-422/485 |
| Ethernet |
10/100 BaseT |
| USB Host |
1 Port |
| Tool Port |
1 USB Device |
| Input Power |
DC 24 V |
| Power Consumption |
6 W |
| Item Weight |
0.7 kg (1.54 lbs) |
| Dimension (mm) |
185 x 127 x 54 |
| Panel Cut (mm) |
177 x 119 |
|
Certifications
|
FCC |
✓ |
| UL |
✓ |
| CE |
✓ |
| RoHS I |
✓ |
| RoHS II |
✓ |
| KC |
✓ |
