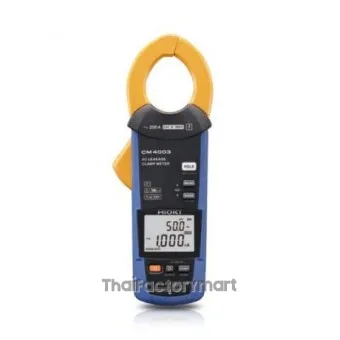

HIOKI CM4003 แคลมป์วัดไฟรั่ว AC Leakage Current 200A (True RMS)
CM4003
FLASH SALE
HOT
THB0.00 THB24,800.00
รายละเอียดสินค้า
| Ac measurement method | True RMS | |

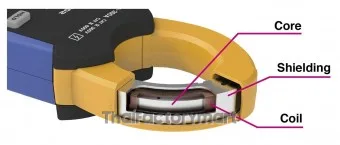

| Core jaw diameter | φ40mm | |
| Jaw dimensions | 75 x 20 mm | |
| AC current | Accuracy specification range | 6.000mA to 200.0A |
| Display range | 0.001mA to 200.0A | |
| Range / Accuracy | 6.000mA / ±1.0% rdg. ±0.005 mA (45 Hz - 400 Hz) / ±2.0% rdg. ±0.005 mA (15 Hz - 45 Hz, 400 Hz - 2 kHz) 60.00mA / ±1.0% rdg. ±0.05 mA (45 Hz - 400 Hz) / ±2.0% rdg. ±0.05 mA (15 Hz - 45 Hz, 400 Hz - 2 kHz) 600.0mA / ±1.0% rdg. ±0.5 mA (45 Hz - 400 Hz) / ±2.0% rdg. ±0.5 mA (15 Hz - 45 Hz, 400 Hz - 2 kHz) 6.000A / ±1.0% rdg. ±0.005 A (45 Hz - 400 Hz) / ±2.0% rdg. ±0.005 A (15 Hz - 45 Hz, 400 Hz - 2 kHz) 60.00A / ±1.5% rdg. ±0.05 A (45 Hz - 400 Hz) / ±2.0% rdg. ±0.05 A (15 Hz - 45 Hz, 400 Hz - 2 kHz) 200.0A / ±1.5% rdg. ±0.5 A (45 Hz - 400 Hz) / ±2.0% rdg. ±0.5 A (15 Hz - 45 Hz, 400 Hz - 2 kHz) |
|
| Frequency characteristics | 15.0 Hz to 2000 Hz | |
| Effects of external magnetic fields | mA or less (with a 400 A / m AC, 50 Hz / 60 Hz external magnetic field) | |
| Crest factor | 3 (other than 200.0 A range), 1.5 (200.0 A range) | |
| Zero display range | 5 digits or less | |
| Output parameters | RMS (RMS value output), WAVE (waveform output) | |
| Output level | RMS | 600 mV DC f.s. (other than 200.0 A range) 200 mV DC f.s. (200.0 A range) |
| WAVE | 600 mV AC f.s. (other than 200.0 A range) 200 mV AC f.s. (200.0 A range) |
|
| Output accuracy | RMS | ±1.0% rdg. ±5 mV (for display digits) |
| WAVE | ±3.0% rdg. ±10 mV (45 Hz to 400 Hz) ±5.0% rdg. ±10 mV (15 Hz to 45 Hz, 400 Hz to 2 kHz) |
|
| Output response | RMS | Refresh rate: 5 times/sec. |
| WAVE | Frequency band: 15 Hz to 15 kHz (within ±3 dB) | |
| Standards | Safety:EN 61010,A type current sensor Measurement category:CAT Ⅲ 300V EMC:EN61326 |
|
| Peak function | Detection from 2ms or more (with filter function OFF) | |
| Filter function | -3dB at 180Hz ± 30Hz | |
| Display refresh rate | 5 times / sec | |
| Operating Temp. / Humid. | -10℃ to 40℃, 80% RH or less 40℃ to 45℃, 60% RH or less 45℃ to 65℃, 50% RH or less |
|
| Storage temperature | -30℃ to 70℃ | |
| Power supply | LR6 alkaline battery ×2 | |
| Dimensions / weight | 64 x 233 x 37 mm / 400 g | |
