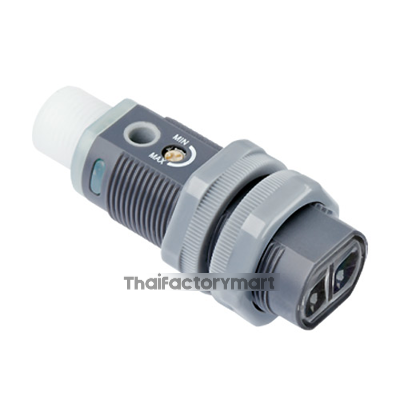

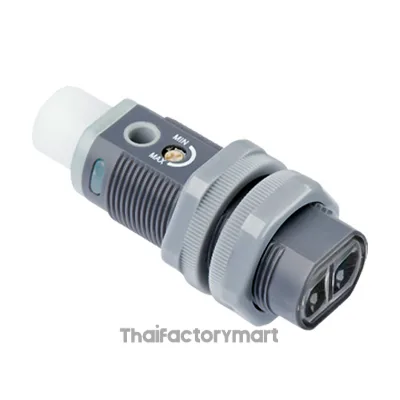

Photoelectric Sensor SENSOPART รุ่น FR 18-2 I-PS-L4 741-11022
741-11022-FR18-2I-PS-L4
-
รายละเอียดสินค้า
Description
- Economical solution for numerous applications
- Range of up to 3.0 m
- Variants with angled light exit
- Polarisation filter for reliable detection of highly reflective surfaces
- Simple adjustment via potentiometer
- 2 through holes as additional mounting possibility
Product data
Sensor principle
| Series | Specification | Value |
|---|---|---|
| Photoelectric retro-reflective sensor | Working distance min. [mm] | 0 |
| Working distance max. [mm] | 3600 | |
| Velocity [Hz] | 1000 | |
| Adjustment | Potentiometer | |
| Light source | LED, infrared | |
| Switching output | PNP | |
| Temperature range [°C] | -25 ... +55 | |
| Connection type | Plug M12, 4-pin | |
| Enclosure rating | IP 67 |
