Family
|

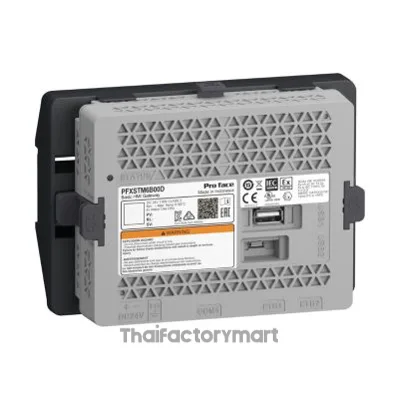

Pro-face Edge Box
|
|
Model
|
PFXSTM6B00DIOT
|
|
Global Code
|
PFXSTM6B00DIOT
|
|
Product Features
|
Edge Box HMI
|
|
Sales Status
|
Sale
|
|
Repair Status
|
✔ (Maintenance service is available, able to be maintained.)
|
Product search item
|
Search Power Supply
|
AC/DC
|
|
Search Appearance
|
Separate
|
|
Function
|
Multi-touch
|
|
Ethernet
|
Equipped
|
|
Serial port
|
1
|
|
Front USB
|
Not equipped
|
Electrical specifications
|
Rated input voltage
|
24 Vdc
|
|
Input voltage limits
|
19.2 to 28.8 Vdc
|
|
Allowable voltage drop
|
5 ms or less
|
|
Power consumption
|
Max.6.8 W
When power is not supplied to external devices: 3.5 W |
|
In-rush current
|
30 A or less
|
|
Noise immunity
|
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs Rise Time : 1 ns (via noise simulator) |
|
Voltage endurance
|
1,000 Vac for 1 minute (between power terminal and FG terminal)
|
|
Insulation resistance
|
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
|
Environmental specifications
|
International safety standards
|
CE, UKCA, UL,cUL (508) Listed, Marine ABS, Marine RINA, EAC, KC, C-Tick
|
|
Surrounding air temperature
|
0 to 60 °C [32 to 140 °F]
|
|
Storage temperature
|
-20 to +60 °C [-4 to 140 °F]
|
|
Ambient humidity
|
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
|
|
Storage humidity
|
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
|
|
Dust
|
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
|
|
Pollution degree
|
For use in Pollution Degree 2 environment
|
|
Corrosive gases
|
Free of corrosive gases
|
|
Air pressure (altitude range)
|
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
|
|
Vibration resistance
|
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.] 9 to 150 Hz fixed acceleration: 9.8 m/s2 X, Y, Z directions for 10 cycles (approx. 100 min.) |
|
Concussion resistance
|
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
|
|
Electrical fast transient/burst
|
IEC 61000-4-4
2 kV: Power port (display unit) 1 kV: Signal ports |
Memory
|
Application memory
|
|
|
Backup memory
|
Editor : BLUE Open Studio -
Battery Replaceable battery / Primary battery for clock data backup |
This memory is used for HMI Runtime and project data. This local storage is used for file storage. Alarm history data, event log, and data logging are stored into local storage. (Using FLASH EPROM)
Interface specifications
|
Serial (COM1)
|
Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (plug)
|
|
USB (Type A)
|
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 % Output Current: 500 mA/port Maximum transmission distance : 5 m [16.4 ft.] |
|
USB (micro-B)
|
Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]
|
|
Ethernet
|
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 2
|
Structural specifications
|
Grounding
|
Functional grounding: Grounding resistance of 100 Ω or less, 2 mm2 (AWG 14) or thicker wire, or your country's applicable standard (SG and FG are connected inside the product).
|
|
Cooling method
|
Natural air circulation
|
|
Structure
|
IP20
|
|
External dimensions
|
W145.6 x H108.23 x D41.4 mm (5.73 x 4.26 x 1.63 in) (excluding protrusions)
|
|
Weight
|
0.27 kg (0.6 lb) or less
|
Dimensions
|
External dimensions
|
When Installation Adapter Attached
Parts Identification
|
