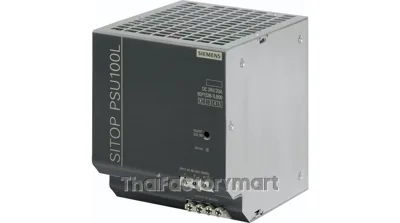

6EP1336-1LB00, SITOP DIN Rail Power Supply, 24V, 20A, 480W, Adjustable
6EP1336-1LB00
FLASH SALE
HOT
เอกสาร
THB0.00 THB5,000.00
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
6EP1336-1LB00, SITOP DIN Rail Power Supply, 24V, 20A, 480W, Adjustableข้อมูลสินค้า
The benefits at a glance
◾ 24 V DC/2.5 A, 5 A, 10 A and 20 A for industrial applications with basic requirements
◾ 1-phase wide-range input
◾ Narrow width
◾ No lateral installation clearances required
◾ Up to 92% efficiency
◾ Green LED for «24 V OK»
◾ Switching in parallel
◾ Cooling through natural convection
◾ Short-circuit and overload protection
◾ CE, cULus and CB certification
|
Technical specifications 1)
|
SITOP lite
|
|||
|
Output voltage/current
|
24 V/2.5 A
|
24 V/5 A
|
24 V/10 A
|
24 V/20 A
|
|
Article No. 2)
|
6EP1332-1LB00
|
6EP1333-1LB00
|
6EP1334-1LB00
|
6EP1336-1LB00
|
|
Input voltage
– Rated value
– Range
|
||||
|
120/230 V AC
93 ... 132/187 ... 264 V AC
|
100-240 V AC
85 … 264 V AC/
88 … 370 V DC
|
|||
|
Power failure backup
|
> 20 ms (at 93/187 V)
|
|||
|
Line frequency
– Rated value
|
50/60 Hz
|
|||
|
Input current
– Rated value
– Inrush current 3)
– Recommended miniature circuit breaker
|
||||
|
1.1 A/0.65 A
< 27 A
3 A characteristic C
|
2.1 A/1.15 A
< 32 A
6 A characteristic C
|
4.1 A/2.0 A
< 65 A
10 A characteristic C
|
5.55 A/2.35 A
< 45 A
10 A characteristic C
|
|
|
Output voltage
– Rated value
– Tolerance
– Adjustment range
|
24 V DC
± 3%
|
|||
|
22.8 26.4 V DC
|
22.8 ... 28 V DC
|
|||
|
Output current
– Rated value
– Derating
|
||||
|
2.5 A
From +45 °C (2%/K)
|
5 A
From +45 °C (2%/K)
|
10 A
From +45 °C (2%/K)
|
20 A
From +45 °C (2.5%/K)
|
|
|
Efficiency at rated values, approx.
|
85%
|
86%
|
89%
|
92%
|
|
Switching in parallel
|
Yes
|
|||
|
Electronic short-circuit protection
|
Yes, constant current
|
|||
|
Radio interference suppression (EN 55022)
|
Class A
|
Class B
|
||
|
Radio interference suppression (EN 61000-3-2)
|
Not applicable
|
No
|
No
|
Yes
|
|
Degree of protection (EN 60529)
|
IP 20
|
|||
|
Ambient temperature
|
0 ... +60 °C
|
-25 … +70 °C
|
||
|
Dimensions (W x H x D) in mm
|
32.5 x 125 x 120
|
50 x 125 x 120
|
70 x 125 x 120
|
110 x 125 x 125
|
|
Weight, approx.
|
0.32 kg
|
0.5 kg
|
0.75 kg
|
1.8 kg
|
|
Certifications
|
CE, cULus, CB
|
|||
1) Technical specifications apply with rated input voltage and +25 °C ambient temperature (if not otherwise specified)
2) Current ordering data and prices, plus terms and conditions of sales and delivery can be found in Catalog KT 10.1 and on the Internet at:
3) The inrush current can be limited to 10 A using the “SITOP inrush current limiter” expansion module, Article Number 6EP1967-2AA00
