Case model, Coationg, Input: 100 to 240 VAC, Power rating 240 W, Output: 24 VDC, Terminal blocks (Push-In Plus Terminal Block), Communications: Yes (EtherNet/IP, Modbus TCP), Parallel operation, Harmonic current emissions

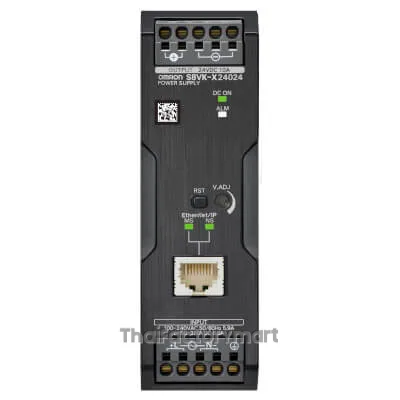

S8VK-X24024-EIP
เอกสาร
THB0.00
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
Specifications
| Type | Book type |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 240 W |
| Efficiency | 93 % |
| Output voltage | 24 V |
| Rated output current | 10 A |
| Power boost ratio | 150 % |
| Temperature range | -40-70 °C |
| Terminal | Push-in |
| Alarm function | - |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 90-350 V |
| Width | 38 mm |
| Height | 129.8 mm |
| Depth | 123.7 mm |
