Technical Data
- Indicating range0 bar ... 10 bar
- Indicating range0 psi ... 145 psi
- Symbol00991463
- Conforms to standardEN 837-1
- Nominal size of pressure gauge50
- Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)

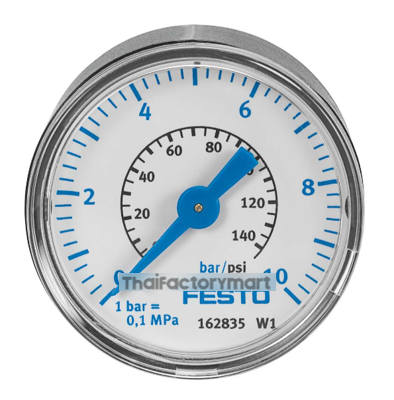

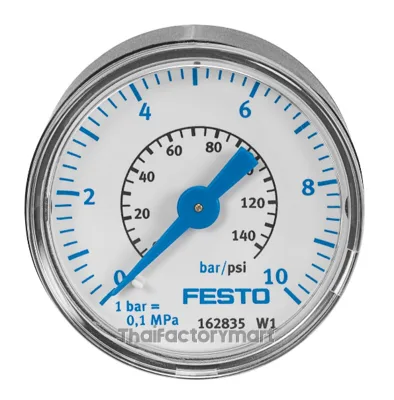

- DesignBourdon tube pressure gauge
- Type of mountingIn-line installation
- Operating mediumInert gases Neutral fluids
- Operating pressure0 MPa ... 1 MPa
- Operating pressure0 bar ... 10 bar
- Operating pressure0 psi ... 145 psi
- Alternating load factor0.66
- Measurement accuracy class2.5
- Degree of protectionIP43
- Media temperature-20 °C ... 60 °C
- Ambient temperature-20 °C ... 60 °C
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Note on materialsRoHS-compliant
- Position of connectionCentred, rear side
- Pneumatic connectionG1/4
- Material in contact with the mediumBrass
- Material screwed plugBrass
- Material housingABS
- Material screenPS
- Housing colourBlack
- Product weight70 g
- Note on operating and pilot mediumNo acetylene No oxygen
- ScaleDouble scale Bar (outside scale) psi (inner scale)
