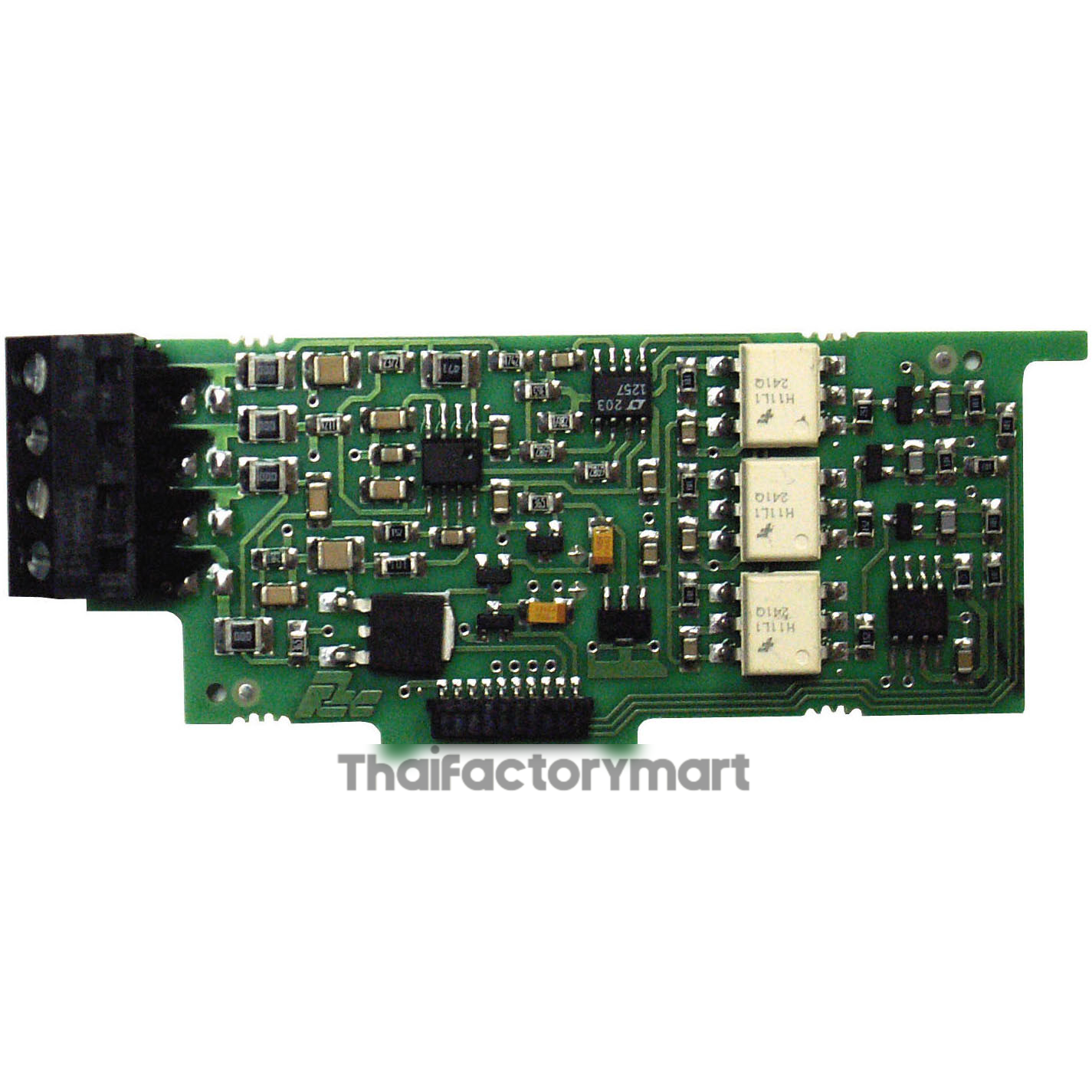

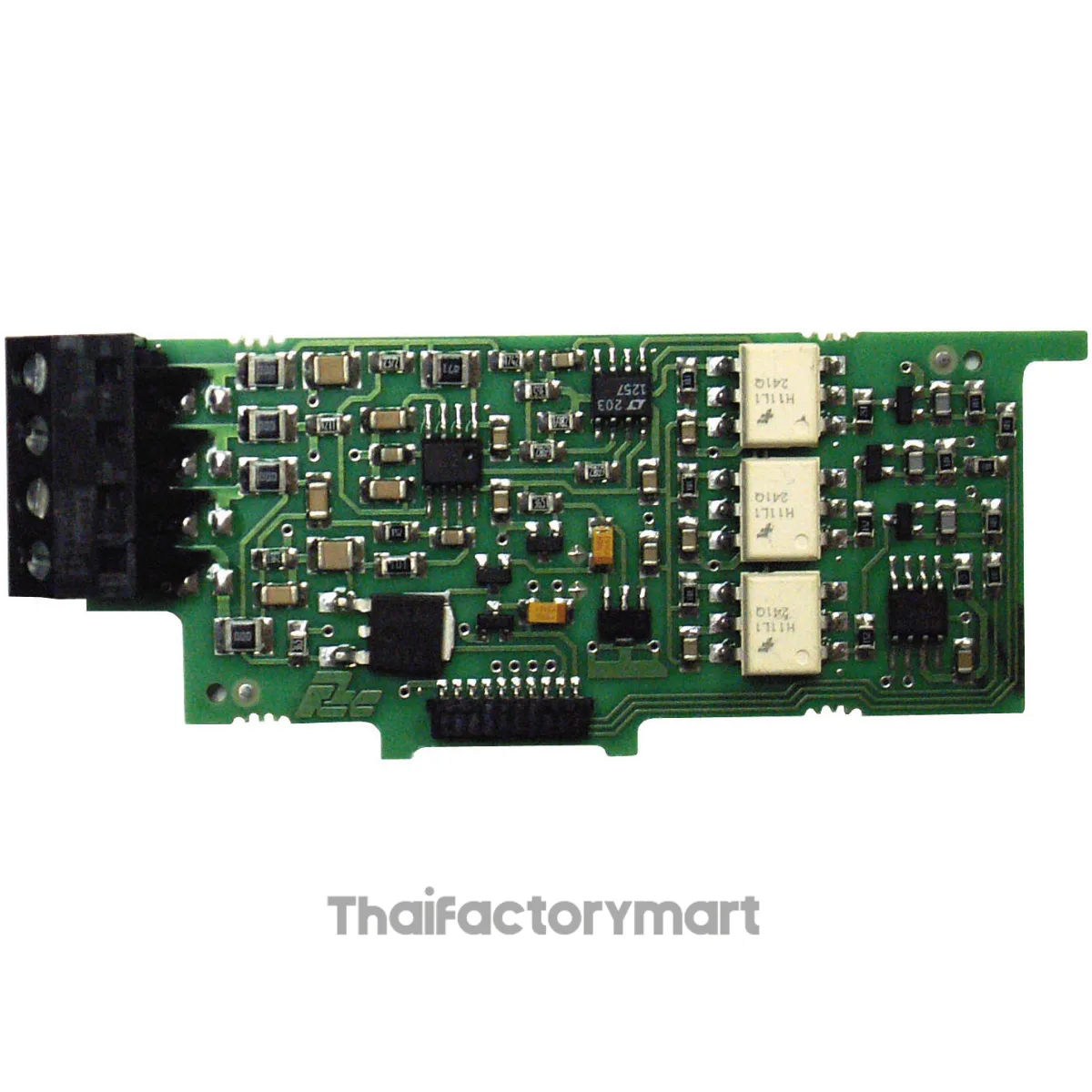

Panel Meter REDLION PAXCDL10 PAXCDL10, Analog Output card - Red Lion (Process indicators PAX2 I/O modules series)

PAXCDL10, Analog Output card - Red Lion (Process indicators PAX2 I/O modules series) - for PAX2 series devices

PAXCDL10

แบรนด์ : REDLION สินค้า Panel Meter ซีรีย์ : PAX/PAX2

เอกสาร

THB0.00

จัดส่งภายใน 2–5 วัน

รายละเอียดสินค้า
ข้อมูลสินค้า
แค็ตตาล็อก

รายละเอียดสินค้า

ANALOG OUTPUT CARD

Types: 0 to 20 mA, 4 to 20 mA or 0 to 10 VDC
Isolation To Sensor & User Input Commons: 500 Vrms for 1 min.
Working Voltage: 50 V. Not Isolated from all other commons.
Accuracy: 0.17% of FS (18 to 28°C); 0.4% of FS (0 to 50°C)
Resolution: 1/3500
Compliance: 10 VDC: 10 KΩ load min., 20 mA: 500 Ω load max.
Powered: Self-powered
Update time: 200 msec. max. to within 99% of final output value (digital filter and internal zero correction disabled)

ข้อมูลสินค้า

Part #	Function	Size	Display	Power	Setpoints Capability	Retransmitted Analog	Communication Capability	Real Time Clock Capability
PAXI0020	Dual Counter or Count/Rate	1/8 DIN	6 Digit, 0.56" (14 mm) Red LED	AC	Yes	Yes	Yes	No
PAXI0030	Dual Counter or Count/Rate	1/8 DIN	6 Digit, 0.56" (14 mm) Red LED	DC	Yes	Yes	Yes	No
PAXC0020	Counter	1/8 DIN	6 Digit, 0.56" (14 mm) Red LED	AC	Yes	No	No	No
PAXC0030	Counter	1/8 DIN	6 Digit, 0.56" (14 mm) Red LED	DC	Yes	No	No	No
PAXD0000	Universal DC Analog Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	AC	Yes	Yes	Yes	No
PAXD0010	Universal DC Analog Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	DC	Yes	Yes	Yes	No
PAXDP000	Dual Process Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	AC	Yes	Yes	Yes	No
PAXDP010	Dual Process Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	DC	Yes	Yes	Yes	No
PAXH0000	AC Current/Voltage Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	AC	Yes	Yes	Yes	No
PAXP0000	Process Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	AC	Yes	Yes	Yes	No
PAXP0010	Process Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	DC	Yes	Yes	Yes	No
PAXR0020	Rate Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	AC	Yes	No	No	No
PAXR0030	Rate Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	DC	Yes	No	No	No
PAXS0000	Strain Gage Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	AC	Yes	Yes	Yes	No
PAXS0010	Strain Gage Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	DC	Yes	Yes	Yes	No
PAXT0000	Universal Temperature Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	AC	Yes	Yes	Yes	No
PAXT0010	Universal Temperature Meter	1/8 DIN	5 Digit, 0.56" (14 mm) Red LED	DC	Yes	Yes	Yes	No
PAXCK000	Real Time Clock	1/8 DIN	6 Digit, 0.56" (14 mm) Red LED	AC	Yes	No	Yes	Yes
PAXCK010	Real Time Clock	1/8 DIN	6 Digit, 0.56" (14 mm) Red LED	DC	Yes	No	Yes	Yes
PAXTM000	Timer	1/8 DIN	6 Digit, 0.56" (14 mm) Red LED	AC	Yes	No	Yes	No
PAXTM010	Timer	1/8 DIN	6 Digit, 0.56" (14 mm) Red LED	DC	Yes	No	Yes	No
