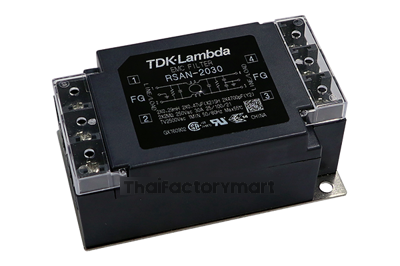

NOISE FILTER AC250V 6A AC/DC LINE FILTER

RSAN-2006

Noise Filter ซีรีย์ RSAN

THB0.00

จัดส่งภายใน 2–5 วัน

  • รายละเอียดสินค้า

  • ข้อมูลสินค้า
  • แค็ตตาล็อก

รายละเอียดสินค้า

Electrical Characteristics

Rated Current
6A
Rated Voltage [AC]
250V
Rated Voltage [DC]
250V
Withstanding Voltage
AC2500V, 60s [line - earth]
Insulation Resistance (Min.)
100MΩ [DC500V, 1min.]
Leakage Current (Max.)
1mA [250V, 60Hz]
DC Resistance (Max.)
110mΩ
Common Mode Attenuation (Min.)
25dB (0.1MHz to 10MHz)
Differential Mode Attenuation (Min.)
25dB (0.1MHz to 30MHz)

Package Type & Size

Package / Mounting
Low profile
Length(L)
52mm Nom. (2.05in Nom.)
Width(W)
87mm Nom. (3.43in Nom.)
Height(H)
35mm Nom. (1.38in Nom.)
Weight
230g Typ.

Other

Terminals
Block Terminal
Operating Temp. Range
-25 to 85°C
Performance
Pulse attenuation
Function
Safety Standard
UL1283
CSA C22.2 No.8
EN60939-1
EN60939-2



ข้อมูลสินค้า

RSAN SERIES

Multipurpose Single-Phase Filter Compatible with High-Voltage Pulse

■ FEATURES

    ● Amorphous core is used as the common mode coil core for the RSEN series, which helps prevent devise error.
    ● Self-tightening screws and an open/close type cover make wiring work easier.
    ● Optional low-leakage current characteristic type and DIN rail installation compatible type are also available.

      ■ SAFETY STANDARDS

      UL1283 UL File No. E62388
      CSA C22.2 No.8 CSA File No. LR76849 EN60939-1/-2 (ENEC14) Licence Ref. No. SE/07115-2

      ■ PRODUCT IDENTIFICATION

        N/A：Standard Type
        D ：DIN rail installation compatible type (Up to 30A)
        L ：Low-leakage current characteristic type (Up to 30A)
        LD ：Low-leakage current characteristic and DIN rail installation compatible type (Up to 30A) Rated current
        Number indicating the rated voltage Series name

        ■ ELECTRICAL CHARACTERISTICS

        Part No.
        Rated voltage
        （AC/DC）
        Rated current
        （AC/DC）
        Withstand voltage
        Insulation resistance
        Leakage current
        Operating temperature range
        With derating over
        DC
        resistance
        （mΩ）
        Attenuation frequency range (MHz)
        Weight
        （g）
        Common mode
        Differential mode
        at 25dB
        at 20dB
        at 25dB

        3A
        AC.2500V
        60s
        ［Between line to ground］
        100MΩ
        min.
        ［DC.500V/
        1min］

        250 max.
        0.1 to 10
        -
        0.1 to 30
        170

        6A

        110 max.
        0.1 to 10
        -
        0.1 to 30
        230

        10A

        40 max.
        0.3 to 10
        -
        0.2 to 30
        230

        16A
        1.0mA

        20 max.
        0.8 to 10
        -
        0.3 to 30
        230
        250V
        20A
        max.
        -25 to +85℃
        55℃
        10 max.
        1 to 10
        -
        0.3 to 30
        230

        30A
        ［250V/60Hz］

        6 max.
        2 to 10
        -
        0.4 to 30
        230

        40A

        6 max.
        0.8 to 10
        -
        0.1 to 30
        870

        50A

        4 max.
        -
        1 to 10
        0.1 to 30
        870

        60A

        3 max.
        2 to 10
        -
        0.2 to 30
        870



        Part No.
        Rated voltage
        （AC/DC）
        Rated current
        （AC/DC）
        Withstand voltage
        Insulation resistance
        Leakage current
        Operating temperature range
        With derating over
        DC
        resistance
        （mΩ）
        Attenuation frequency range (MHz)
        Weight
        （g）
        Common mode
        Differential mode
        at 20dB
        at 10dB
        at 25dB

        3A

        100MΩ
        min.
        ［DC.500V/
        ［2
        1min］
        10μA
        max. 50V/60Hz］

        250 max.
        0.1 to 3
        -
        0.1 to 30
        170

        6A
        AC.2500V

        110 max.
        0.1 to 3
        -
        0.1 to 30
        230
        250V
        10A
        60s
        ［Between line
        -25 to +85℃
        55℃
        40 max.
        0.5 to 6
        -
        0.2 to 30
        230
        16A
        20 max.
        -
        0.3 to 10
        0.3 to 30
        230

        20A
        to ground］

        10 max.
        -
        0.5 to 8
        0.3 to 30
        230

        30A

        6 max.
        -
        3 to 20
        0.4 to 30
        230
