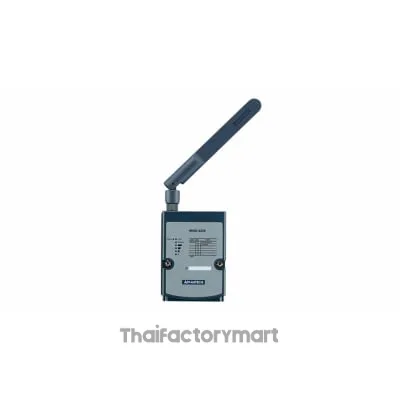

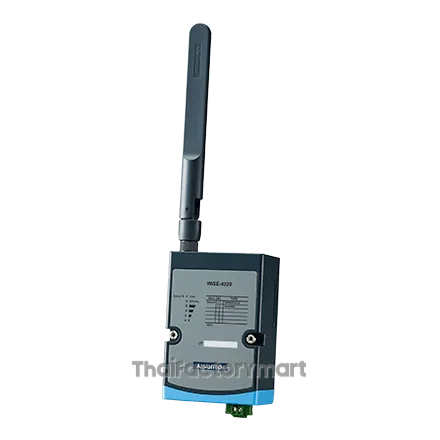

WISE-4220-A, I/O Modules WiFi 2.4G Wireless Sensor Module
WISE-4220-A
เอกสาร
THB0.00
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
Main Features
- 2.4GHz Wi-Fi reducing the wiring cost during big data acquisition
- Easily extend the existing network by adding APs, and share existing Ethernet software
- Configured by mobile devices directly without installing any software or Apps
- Zero data loss using the log function with RTC time stamp
- Data can be automatically pushed to Dropbox or computer
- Supports RESTful web API in JSON format for IoT integration
| Specifications | ||
| Part Number | WISE-4220-A | |
| General | WLAN | IEEE 802.11b/g/n 2.4GHz |
| Power Input | 10 ~ 50 VDC | |
| Mounting | DIN 35 rail, wall, pole, and stack | |
| Watchdog Timer | System (1.6 second) & Communication (programmable) | |
| Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP | |
| Connector | Plug-in screw terminal block (I/O and power) | |
| Watchdog | System (1.6 second) and Communication | |
| Web Server | HTML5 with JavaScript & CSS3 | |
| System Configuration Backup | Support | |
| User Defined Modbus Address | Support | |
| Web API | RESTful in JSON format | |
| Enclosure | PC | |
| User Access Control | Support | |
| Data Log | Up to 10000 samples with time stamp | |
| Environment | Temperature (Operating) | -25 ~ 70°C (-13~158°F) |
| Temperature (Storage) | - 40 ~ 85° C (-40 ~185° F) | |
| Humidity (Operating) | 20 ~ 95% RH (non-condensing) | |
| Humidity (Storage) | 0 ~ 95% RH (non-condensing) | |
| Power | Power Consumption | 1.2 W @ 24 VDC |
| Protection | Power Reversal Protection | Yes |
