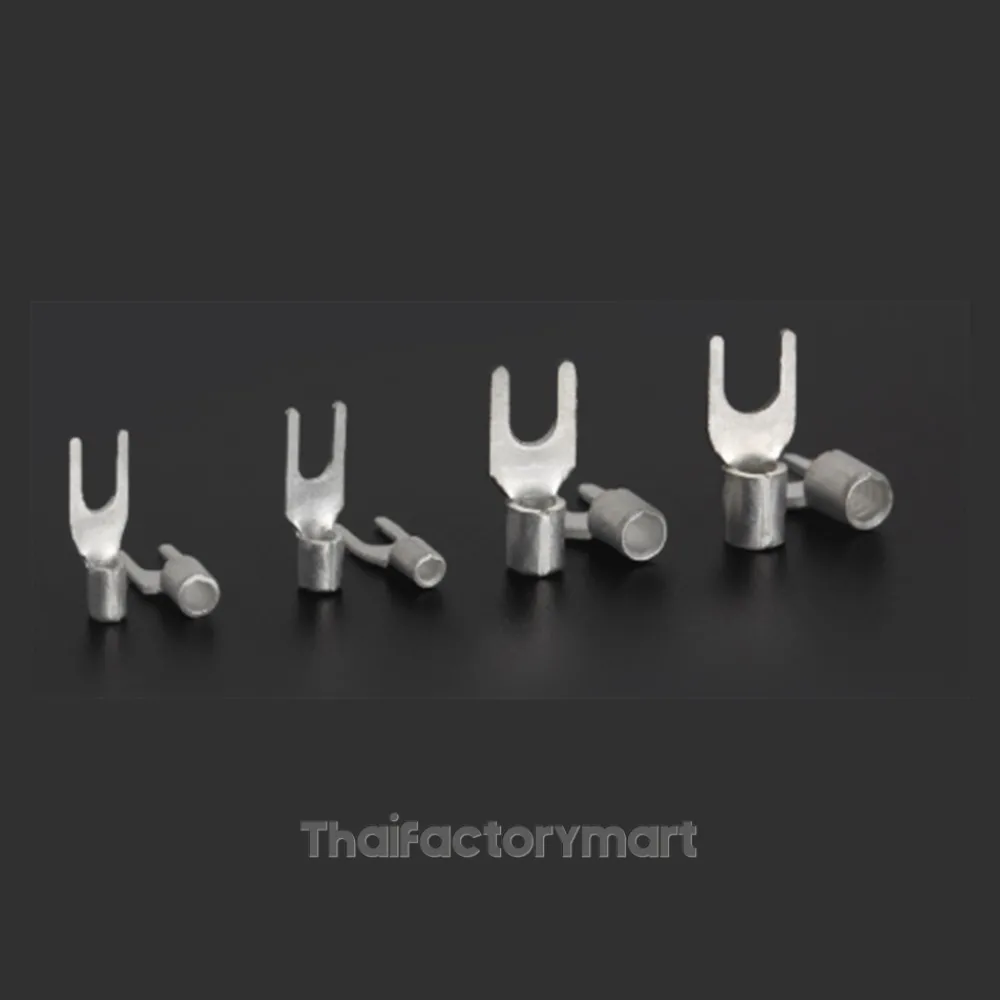

TLUG Y6-5S Bare Spade Terminal (Y Type), 6 mm² Wire, Screw Ø5.3 mm, ETP-Copper Tin Plated
TLUG Y6-5S Bare Spade Terminal (Y Type), 6 mm² Wire, Screw Ø5.3 mm, ETP-Copper Tin Plated photo 2
1 / 2
Click to enlarge TLUG
TLUG Y6-5S Bare Spade Terminal (Y Type), 6 mm² Wire, Screw Ø5.3 mm, ETP-Copper Tin Plated photo 1 TLUG Y6-5S Bare Spade Terminal (Y Type), 6 mm² Wire, Screw Ø5.3 mm, ETP-Copper Tin Plated photo 2
Y6-5S

TLUG Y6-5S Bare Spade Terminal (Y Type), 6 mm² Wire, Screw Ø5.3 mm, ETP-Copper Tin Plated

Ask for a price — request a quote right away
Ask sales about stock
Ask us on LINE 087-979-8880
  • Our sales team confirms stock and price before issuing the quote
  • Request a quote online — free of charge

Product details

TLUG Y6-5S Bare Spade Terminal (Y Type), 6 mm² Wire, Screw Ø5.3 mm, ETP-Copper Tin Plated. Contact the Thaifactorymart sales team to check stock, project pricing and lead time.

Part number (SKU / MPN)
Y6-5S
Brand
TLUG

Specifications

แบรนด์TLUG
ประเภทหางปลาแฉกเปลือย (Spade Terminal, Y Type)
วัสดุทองแดง ETP (ETP-Copper)
การเคลือบผิวชุบดีบุก (Tin plated)
ขนาดสาย TIS6 mm²
ขนาดสาย DIN4 - 6 mm²
AWG12 - 10

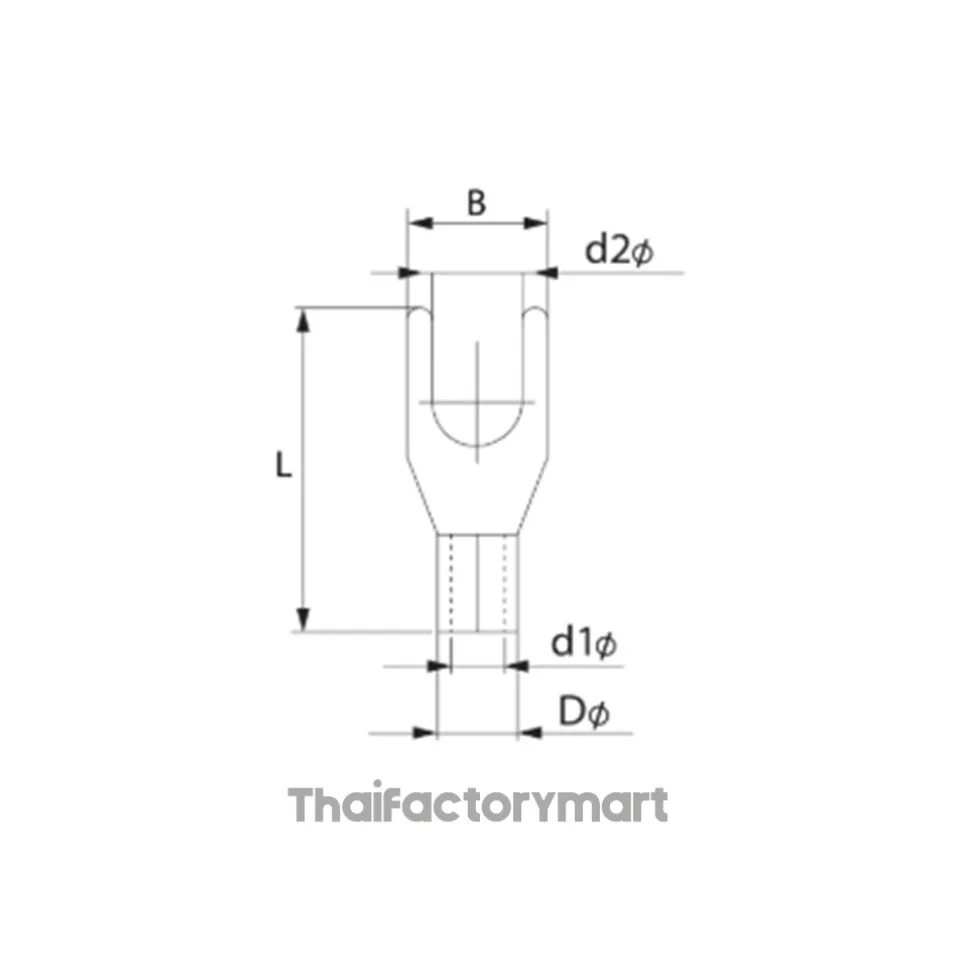

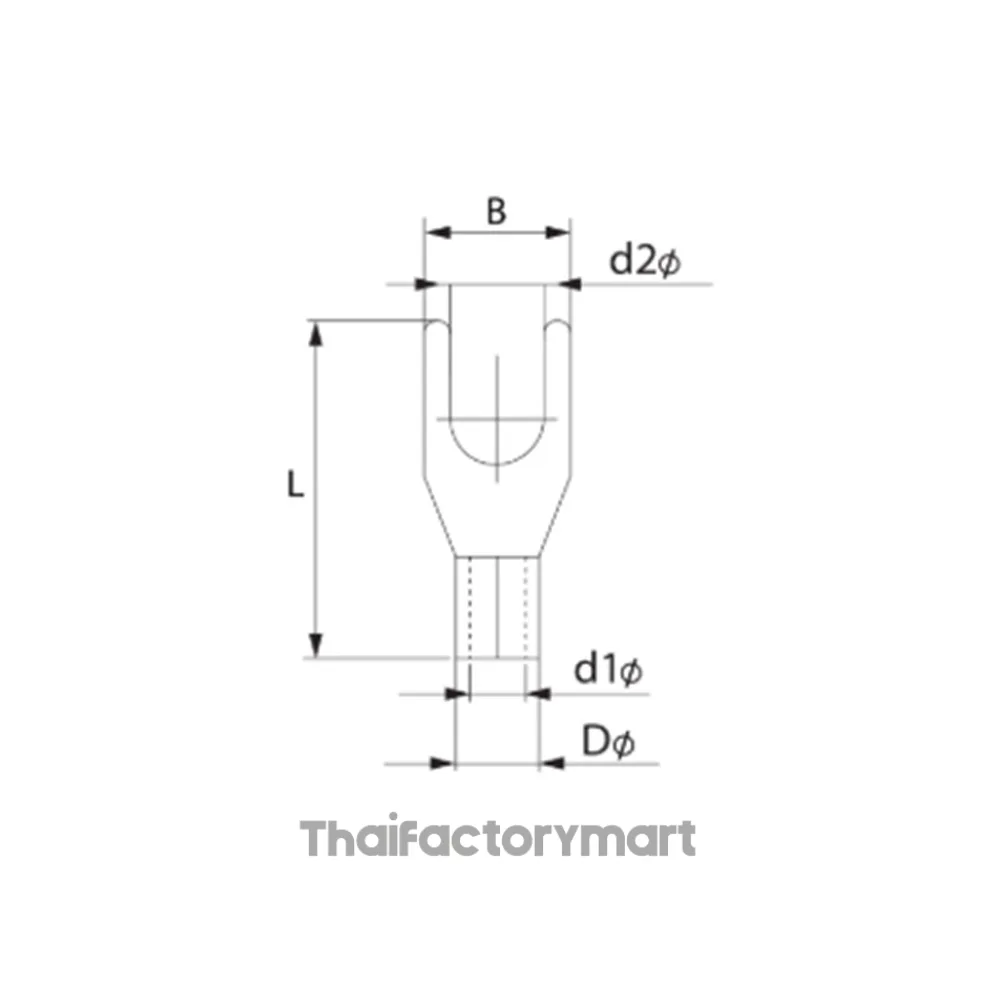

ขนาดช่องสกรู (d2Ø)5.3 mm
ความกว้างแฉก (B)8.2 mm
ความยาว (L)18.8 mm
เส้นผ่านศูนย์กลางนอกกระบอกสาย (DØ)5.4 mm
เส้นผ่านศูนย์กลางในกระบอกสาย (d1Ø)3.4 mm
จำนวนต่อกล่อง2,000 ตัว
