PACAL AUTOMATION CONTROL 5500PACA

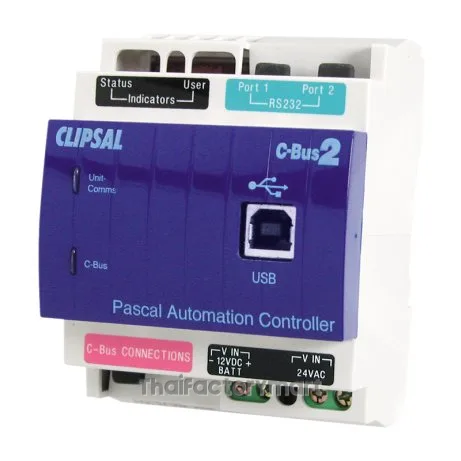

C-Bus Pascal Automation Controller

A DIN Rail mounted, four module wide C-Bus unit, which enables C-Bus to perform complex conditional events, real-time scheduling, combinations of conditional events and scheduling, calculations and protocol conversions.

Please Note: Before the C-Bus Pascal Automation Controller becomes a functional unit, it must be programmed by a Clipsal C-Bus Accredited Professional using the C-Bus PICED configuration software. Manufacturers warranty may be void if not complied with. Contact your Clipsal C-Bus specialist for further information.

• Provides extended conditional and real-time event programming for C-Bus
• Programming downloaded directly to the unit
• Connects directly to C-Bus (can act as a PC interface)
• Powered from C-Bus
• 4M DIN modules wide
• 2 x RS-232 ports for third party device control
• A scene programming tool to easily program scenes
• A programming wizard for creating basic logic programs
• Complex programs are created via the free-form text programming
• Programming language based on the standard Pascal, with C-Bus control related commands.
• The Pascal language supports commands such as IF, THEN, AND, OR, etc.
