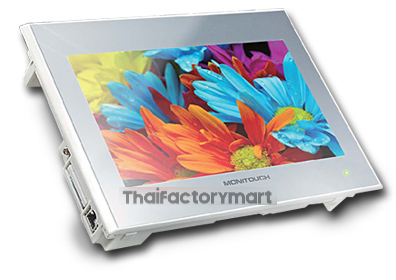

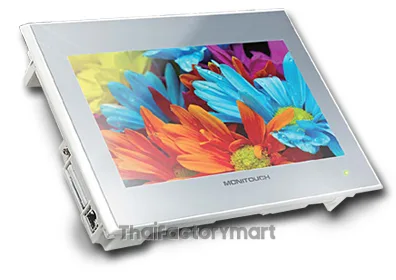

Human Machine Interfaces, Monitouch V9 Series
Item# V9071IWRLD - V9 Adv. 10" WVGA TFT, 16.7M C, USBA&B(Mini), Built-in Ethernet x 2CH, Wireless, Capacitive, 24VDC
Monitouch V9 Series Information
The MONITOUCH V9 Series includes three line‑ups with the V9 Lite, V9 Standard, and the V9 Advanced, designed to replace the V8 Series while also offering step‑up features to satisfy the requirements of more advanced applications. Fuji Electric’s MONITOUCH Human Machine Interface (HMI) V9 series range in size from 5.7” to 15". All models in the V9 Series are UL Certified, and come standard with on‑board Ethernet ports and SD card slots, allowing for better connectivity to peripheral devices.
Specifications
Item Number: V9071IWRLDBrand:FujiItem Category:Human Machine InterfaceSeries:Monitouch V9Display Size:7 InchesDisplay Type:Color TFTTouch Screen:YesOutdoor Viewable:NoScreen Resolution:800x480Touch Region Resolution:AnalogCommunications:USB;Serial;EthernetUSB Ports:(1) USB 2.0Ethernet Ports:(1) 10/100 Base TSerial Ports:(2) RS-232/RS-422/RS-485PCMCIA:NoWireless LAN:YesTactile Pushbuttons:NoVideo Output Port:NoMounting:PanelBezel:Silver PlasticForm Factor:StandardVolts DC:24Max. Power Consumption:27 WattsOperating System:Dedicated OSUser Memory:64 MBExpandable Memory Option:SD Card;USB DiskDrivers:Serial RS-232/RS-422/RS-485;EthernetExposure Rating:IP66;IP20Operating Temperature:32 to 122 Degrees FApprovals:UL;cUL;CEH x W x D:5.81 in x 7.94 in x 2.37 in
Item Number:
V9071IWRLD
Brand:
Fuji
Item Category:
Human Machine Interface
Series:
Monitouch V9
Display Size:
7 Inches
Display Type:
Color TFT
Touch Screen:
Yes
Outdoor Viewable:
No
Screen Resolution:
800x480
Touch Region Resolution:
Analog
Communications:
USB;Serial;Ethernet
USB Ports:
(1) USB 2.0
Ethernet Ports:
(1) 10/100 Base T
Serial Ports:
(2) RS-232/RS-422/RS-485
PCMCIA:
No
Wireless LAN:
Yes
Tactile Pushbuttons:
No
Video Output Port:
No
Mounting:
Panel
Bezel:
Silver Plastic
Form Factor:
Standard
Volts DC:
24
Max. Power Consumption:
27 Watts
Operating System:
Dedicated OS
User Memory:
64 MB
Expandable Memory Option:
SD Card;USB Disk
Drivers:
Serial RS-232/RS-422/RS-485;Ethernet
Exposure Rating:
IP66;IP20
Operating Temperature:
32 to 122 Degrees F
Approvals:
UL;cUL;CE
H x W x D:
5.81 in x 7.94 in x 2.37 in
