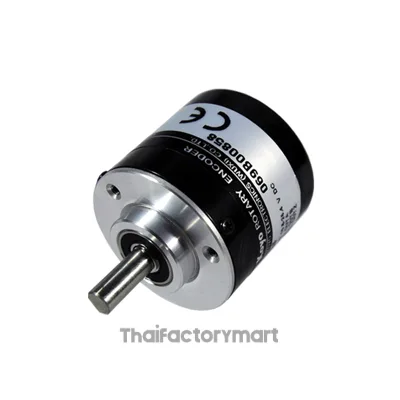

Koyo Encoder, Incremental, Light Duty, 360 Pulses per Revolution, 6mm Solid Shaft, 38mm Diameter Body, 12-24VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 1 meter Cable, Tinned Ends, Mounting Screws included
TRD-2T360BF
เอกสาร
-
รายละเอียดสินค้า
- Manufacturer : Koyo
- Product No. : TRD-2T360BF
- Product Type : Incremental Encoder
- Operating voltage : BF = DC10.8V~26.4V
- Signal format : Two-phase + home position output
- Starting torque : Max. 0.01N·m(+20 C)
- Max. allowable shaft load : Radial 30N
- Max. allowable shaft load : Thrust 20N
- Max. allowable speed : 5000rpm
- Material Oil-resistant cable : PVC
- Supply Voltage:DC10.8 to 26.4 V
- Output Voltage("H"):[(Supply Voltage) -3 V] or more
- Output Voltage("L"):0.4 V or lower
- Load Supply Voltage:30 V DC or lower
- Output Current(Inflow):Up to 30 mA
- Output Current(outflow):Up to 10 mA
- Maximum Response Frequency:200 kHz
- Weight : 0.16 Kg
- Shipping Weight : 2 Kg
