คุณสมบัติ | รายละเอียด |
---|---|

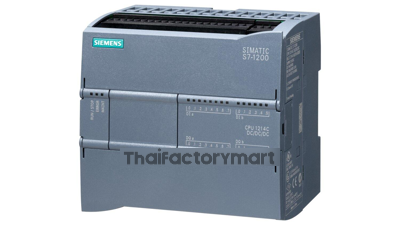

For Use With | SIMATIC S7-1200 Series |
Manufacturer Series | S7-1200 |
Number of Inputs | 14 (Digital Input, 2 switch as Analogue Input) |
Output Type | Digital, Transistor |
Voltage Category | 24 V dc |
Input Type | Analogue, Digital |
Number of Outputs | 10 (Digital Output, Transistor Output) |
Network Type | Ethernet |
Communication Port Type | Ethernet, Profinet, UDP |
Program Capacity | 75 kB |
Programming Interface | Profinet |
Minimum Operating Temperature | -20°C |
Mounting Type | DIN Rail, Wall Mount |
Programming Language Used | FBD, LAD, SCL |
Number of Communication Ports | 1 |
Output Current | 500 mA |
Maximum Operating Temperature | +60°C |
Width | 110mm |
Memory | 4 MB |
Length | 100mm |
Depth | 75mm |
Dimensions | 100 x 110 x 75 mm |
