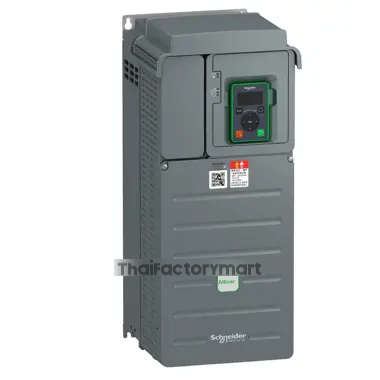

| range of product | Altivar Easy 610 | |
|---|---|---|
| product or component type | Variable speed drive | |
| product specific application | Fan, pump, compressor, conveyor | |
| device short name | ATV610 | |
| variant | Standard version | |
| product destination | Asynchronous motors | |
| mounting mode | Cabinet mount | |
| EMC filter | Integrated conforming to EN/IEC 61800-3 category C3 with 50 m maximum | |
| IP degree of protection | IP20 | |
| type of cooling | Forced convection | |
| supply frequency | 50...60 Hz (+/-5 %) | |
| network number of phases | 3 phases | |
| [Us] rated supply voltage | 380...415 V (- 15...10 %) | |
| motor power kW | 22 kW normal duty 18.5 kW heavy duty | |
| motor power hp | 30 hp normal duty 25 hp heavy duty | |
| line current | 41.9 A at 380 V normal duty 39 A at 415 V normal duty 36 A at 380 V heavy duty 33.8 A at 415 V heavy duty | |
| prospective line Isc | 22 kA | |
| apparent power | 28 kVA at 415 V normal duty 24.3 kVA at 415 V heavy duty | |
| continuous output current | 46.3 A at 4 kHz normal duty 39.2 A at 4 kHz heavy duty | |
| maximum transient current | 50.9 A during 60 s normal duty 58.8 A during 60 s heavy duty | |
| asynchronous motor control profile | Constant torque standard Variable torque standard Optimized torque mode | |
| output frequency | 0.0001...0.5 kHz | |
| nominal switching frequency | 4 kHz | |
| switching frequency | 2...12 kHz adjustable | |
| number of preset speeds | 16 preset speeds | |
| communication port protocol | Modbus serial | |
| option card | Slot A : communication card Profibus DP V1 Slot A : digital or analog I/O extension card Slot A : relay output card |
| output voltage | <= power supply voltage | |
|---|---|---|
| motor slip compensation | Adjustable Automatic whatever the load Can be suppressed Not available in permanent magnet motor law | |
| acceleration and deceleration ramps | Linear adjustable separately from 0.01 to 9000 s S, U or customized | |
| braking to standstill | By DC injection | |
| protection type | Motor : thermal protection Motor : motor phase break Drive : thermal protection Drive : overheating Drive : overcurrent between output phases and earth Drive : overload of output voltage Drive : short-circuit protection Drive : motor phase break Drive : overvoltages on the DC bus Drive : line supply overvoltage Drive : line supply undervoltage Drive : line supply phase loss Drive : overspeed Drive : break on the control circuit | |
| frequency resolution | Display unit : 0.1 Hz Analog input : 0.012/50 Hz | |
| electrical connection | Control, screw terminals : 0.5...1.5 mm² Line side, screw terminal : 16 mm² Motor, screw terminal : 16 mm² | |
| connector type | 1 RJ45 (on the remote graphic terminal) for Modbus serial | |
| physical interface | 2-wire RS 485 for Modbus serial | |
| transmission frame | RTU for Modbus serial | |
| transmission rate | 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial | |
| type of polarization | No impedance for Modbus serial | |
| number of addresses | 1...247 for Modbus serial | |
| method of access | Slave | |
| supply | External supply for digital inputs : 24 V DC (limits : 19...30 V), <= 1.25 mA (overload and short-circuit protection) Internal supply for reference potentiometer (1 to 10 kOhm) : 10.5 V DC +/- 5 %, <= 10 mA (overload and short-circuit protection) | |
| local signalling | 1 LED red for presence of voltage 2 LEDs for local diagnostic 1 LED yellow for embedded communication status 2 LEDs dual colour for communication module status | |
| width | 211 mm | |
| height | 580 mm with EMC plate 495 mm | |
| depth | 232 mm | |
| product weight | 13.9 kg | |
| analogue input number | 3 | |
| analogue input type | Software-configurable voltage AI1, AI2, AI3 : 0...10 V DC, impedance 30 kOhm, resolution 12 bits Software-configurable current AI1, AI2, AI3 : 0...20 mA, impedance 250 Ohm, resolution 12 bits Software-configurable temperature probe or water level sensor AI2, AI3 | |
| discrete input number | 6 | |
| discrete input type | Programmable as pulse input DI5, DI6 0...30 kHz : 24 V DC (limits : <= 30 V) Programmable as logic input DI1...DI6 : 24 V DC (limits : <= 30 V), impedance 3.5 kOhm | |
| input compatibility | Level 1 PLC conforming to EN/IEC 61131-2, logic input DI1...DI6 Level 1 PLC conforming to IEC 65A-68, pulse input DI5, DI6 | |
| discrete input logic | Positive logic (source) : DI1...DI6 configurable logic input, < 5 V (state 0), > 11 V (state 1) Negative logic (sink) : DI1...DI6 configurable logic input, > 16 V (state 0), < 10 V (state 1) Positive logic (source) : DI5, DI6 configurable pulse input, < 0.6 V (state 0), > 2.5 V (state 1) | |
| analogue output number | 2 | |
| analogue output type | Software-configurable current AQ1, AQ2 : 0...20 mA, resolution 10 bits Software-configurable voltage AQ1, AQ2 : 0...10 V DC,impedance 470 Ohm, resolution 10 bits | |
| sampling duration | Analog input AI1, AI2, AI3 : 5 ms (+/- 0.1 ms) Analog output AQ1, AQ2 : 10 ms (+/- 1 ms) Discrete input DI1...DI6 : 2 ms (+/- 0.5 ms) configurable Pulse input DI5, DI6 : 5 ms (+/- 1 ms) configurable | |
| accuracy | Analog input AI1, AI2, AI3 : +/- 0.6 % for a temperature variation 60 °C Analog output AQ1, AQ2 : +/- 1 % for a temperature variation 60 °C | |
| linearity error | Analog input AI1, AI2, AI3 : +/- 0.15 % of maximum value Analog output AQ1, AQ2 : +/- 0.2 % | |
| relay output number | 3 | |
| relay output type | Configurable relay logic R1 : fault relay NO/NC, electrical durability 100000 cycles Configurable relay logic R2 : sequence relay NO, electrical durability 100000 cycles Configurable relay logic R3 : sequence relay NO, electrical durability 100000 cycles | |
| refresh time | Relay output R1, R2, R3 : 5 ms (+/- 0.5 ms) | |
| minimum switching current | Relay output R1, R2, R3 : 5 mA at 24 V DC | |
| maximum switching current | Relay output R1, R2, R3 on resistive load (cos phi = 1 : 3 A at 250 V AC Relay output R1, R2, R3 on resistive load (cos phi = 1 : 3 A at 30 V DC Relay output R1, R2, R3 on inductive load (cos phi = 0.4 and L/R = 7 ms) : 2 A at 250 V AC Relay output R1, R2, R3 on inductive load (cos phi = 0.4 and L/R = 7 ms) : 2 A at 30 V DC | |
| isolation | Between power and control terminals | |
| insulation resistance | > 1 mOhm at 500 V DC for 1 minute to earth |
| noise level | 65 dB conforming to 86/188/EEC | |
|---|---|---|
| power dissipation in W | 492 W (forced convection) at 380 V, switching frequency 4 kHz 72 W (natural convection) at 380 V, switching frequency 4 kHz | |
| volume of cooling air | 215 m3/h | |
| operating position | Vertical +/- 10 degree | |
| electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 | |
| pollution degree | 2 conforming to EN/IEC 61800-5-1 | |
| vibration resistance | 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 15 gn during 11 ms conforming to IEC 60068-2-27 | |
| relative humidity | 5...95 % without condensation conforming to IEC 60068-2-3 | |
| ambient air temperature for operation | -15...45 °C without derating 45...60 °C with derating factor | |
| ambient air temperature for storage | -40...70 °C | |
| operating altitude | 1000...4800 m with current derating 1 % per 100 m <= 1000 m without derating | |
| environmental characteristic | Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3 Dust pollution resistance class 3S3 conforming to EN/IEC 60721-3-3 | |
| standards | EN/IEC 61800-3 EN/IEC 61800-3 environment 2 category C3 EN/IEC 61800-5-1 IEC 60721-3 | |
| product certifications | REACH | |
| marking | CE |
:
:
