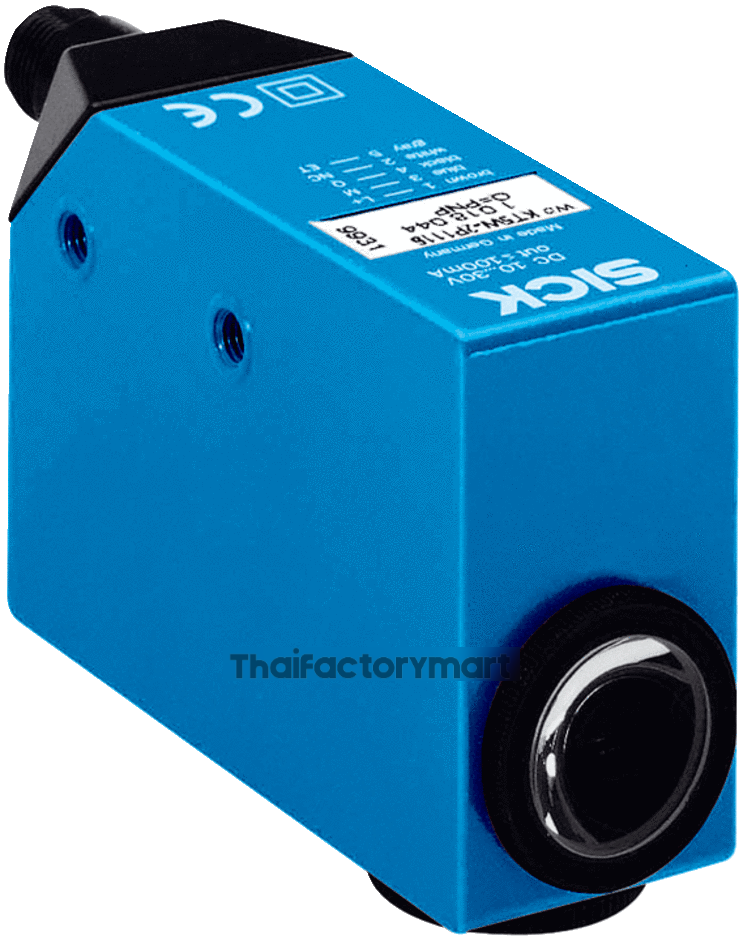

KT5, KT5-2 Teach-in. Sensing distance: 10 mm. Light source: LED red, green, blue. Switching mode: PNP. Adjustment/ teach-in: Static 2-point teach-in.
1053258-KT5W-2P1156S41
เอกสาร
-
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
- Tough, metal housing
- Teach-in of switching threshold via control panel or control cable
- Maximum detection reliability due to 3-color RGB LED technology
- Switching frequency of 10 kHz
- Analog output 0 V ... 5 V
- Transmission color adjustable
- M12 plug can be rotated 90°
- All print marks and color combinations are reliably detected, ensuring high machine throughput
- Reliable operation, even with jittering webs and high-gloss materials
- High positioning accuracy improves packaging quality
- Flexible start up: light source can be adjusted via external teach or manually
- Contrast mark or background receiving signal is displayed via the analog output
Your benefits
