Family
|
HMI
|
|
Series
|

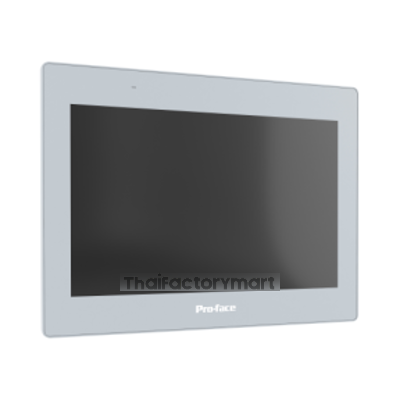

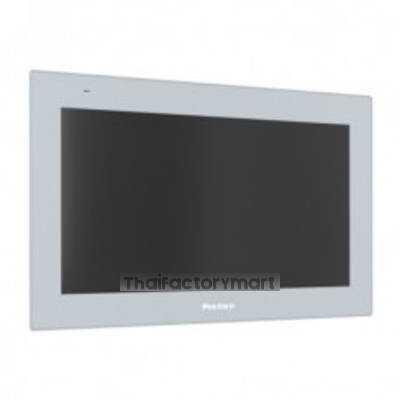

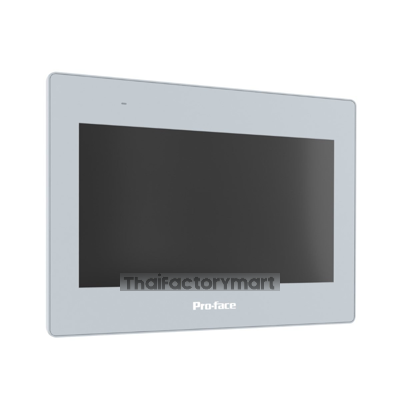

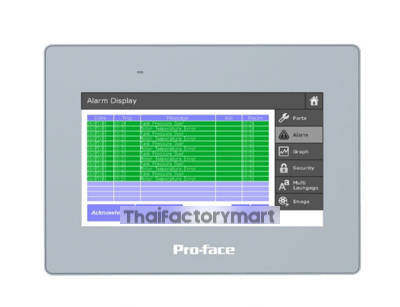

ET6000 Series
|
|
Size
|
12.1" Wide
|
|
Model
|
PFXET6600WAD
|
|
Global Code
|
PFXET6600WAD
|
|
Product Features
|
12" DC Analog
|
|
Repair Status
|
✔ (Maintenance service is available, able to be maintained.)
|
|
Display type
|
TFT Color LCD
|
|
Display size
|
12.1" Wide
|
|
Resolution
|
1,280 x 800 pixels (WXGA)
|
|
Effective display area
|
W261.12 x H163.2 mm [W10.28 x H6.43 in.]
|
|
Display colors
|
16 million colors*1
|
|
Backlight
|
White LED (Not user replaceable. When replacement is required, contact customer support.)
|
|
Backlight service life
|
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%)
|
|
Brightness control
|
16 Levels (Adjusted with touch panel or software)
|
|
Touch panel type
|
Resistive Film (analog, single-touch)
|
|
Touch panel resolution
|
1,024 x 1,024
|
|
Touch panel lifetime
|
1,000,000 times or more
|
|
Rated input voltage
|
24 Vdc
|
|
Input voltage limits
|
19.2 to 28.8 Vdc
|
|
Allowable voltage drop
|
5 ms or less
|
|
Power consumption
|
14 W
|
|
In-rush current
|
30 A or less
|
|
Noise immunity
|
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs Rise Time : 1 ns (via noise simulator) |
|
Voltage endurance
|
1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
|
|
Insulation resistance
|
500 Vdc, 10 MΩ or more
|
|
International safety standards
|
CE, UKCA, UL,cUL (508) Listed, EAC, KC
|
|
Surrounding air temperature
|
0 to 50 °C [32 to 122 °F]
|
|
Storage temperature
|
-20 to +60 °C [-4 to 140 °F]
|
|
Ambient humidity
|
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
|
|
Storage humidity
|
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
|
|
Dust
|
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
|
|
Pollution degree
|
For use in Pollution Degree 2 environment
|
|
Corrosive gases
|
Free of corrosive gases
|
|
Air pressure (altitude range)
|
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
|
|
Vibration resistance
|
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.] 9 to 150 Hz fixed acceleration: 9.8 m/s2 X, Y, Z directions for 10 cycles (approx. 100 min.) |
|
Concussion resistance
|
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
|
|
Electrical fast transient/burst
|
IEC 61000-4-4
2 kV: Power port (display unit) 1 kV: Signal ports |
|
Electrostatic discharge immunity
|
Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV (IEC/EN61000-4-2 Level 3) |
|
Application memory
|
When using GP-Pro EX:
- Media: FLASH EPROM - Screen Area: 64MB - User Font Area: 8MB - Logic Program Area: 132KB (Equivalent to 15,000 steps) - Free Space: None Removable System: No |
|
Backup memory
|
When using GP-Pro EX:
- Screen Area: SRAM 128KB - Variable Area: None Battery: Replaceable battery / Primary battery for clock data backup |
|
Serial (COM1)
|
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
|
|
Serial (COM2)
|
Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (plug)
|
|
USB (Type A)
|
Conforms to USB 2.0 (Type A) x 1
|
|
USB (micro-B)
|
Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]
|
|
Ethernet
|
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
|
|
Grounding
|
Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard.
|
|
Cooling method
|
Natural air circulation
|
|
Structure
|
IP65
|
|
External dimensions
|
W310.5 x H232.5 x D50 mm
|
|
Panel cut-out dimensions
|
W295 x H217 mm [W11.61 x H8.54 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*1 |
|
Weight
|
1.8 kg [3.97 lb] or less
|
|
